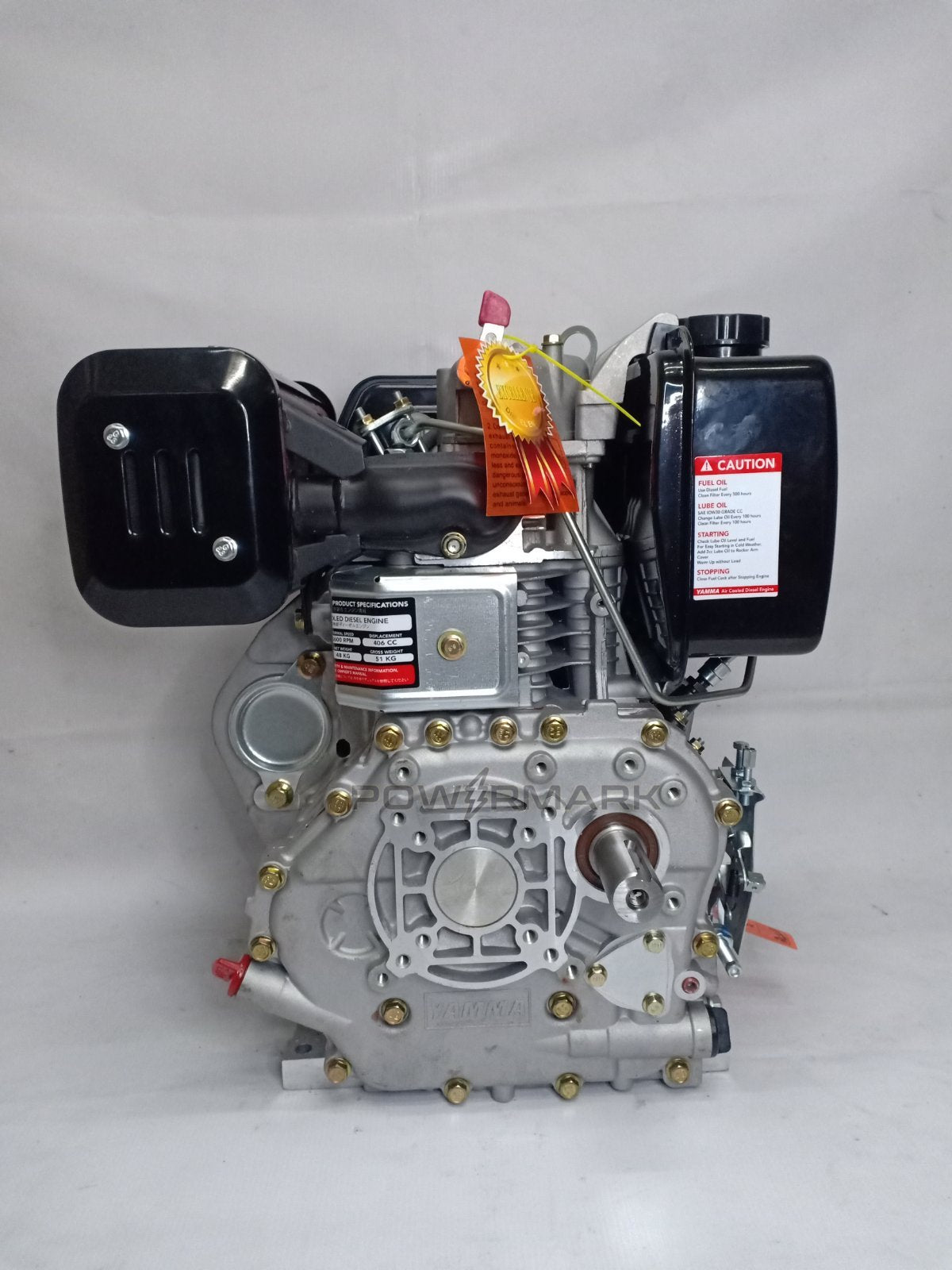

YAMMA Air Cooled Diesel Engine 10 HP (low-speed/reduction) 1800 rpm with Pulley

SPECIFICATIONS

Inlcusive of Pulley for Concrete Mixer
Bore*Stroke: 86*70mm
Displacement: 0.406L
Normal speed: 3000-3600r/min.
Normal power: 5.7-6.3kW
Mean speed of piston: 7-8.4m/s
Mean effective pressure: 562-517kPa
Consumption rate of fuel: 280g/(kW.h)
Fuel tank capacity: 5.5L
Lub. Oil capacity full: 1.65L
Rotary direction of crankshaft: Clockwise from flywheel end
Cooling type: Forced air-cooled system
Lub  type: pressure, splash
Starting type: Recoil manual start and optional electric start

INCLUSIONS

1 x YAMMA YS186FS-MP Air Cooled Diesel Engine 10HP;
1 x Pulley;
3 x Wrench;
1 x Philip screw;
1 x Pipe extension;
1 x Nut;
1 x Washer;
1 x Manual

DIMENSIONS

52.8 x 45.8 x 53.5

WEIGHT

46.5kg
